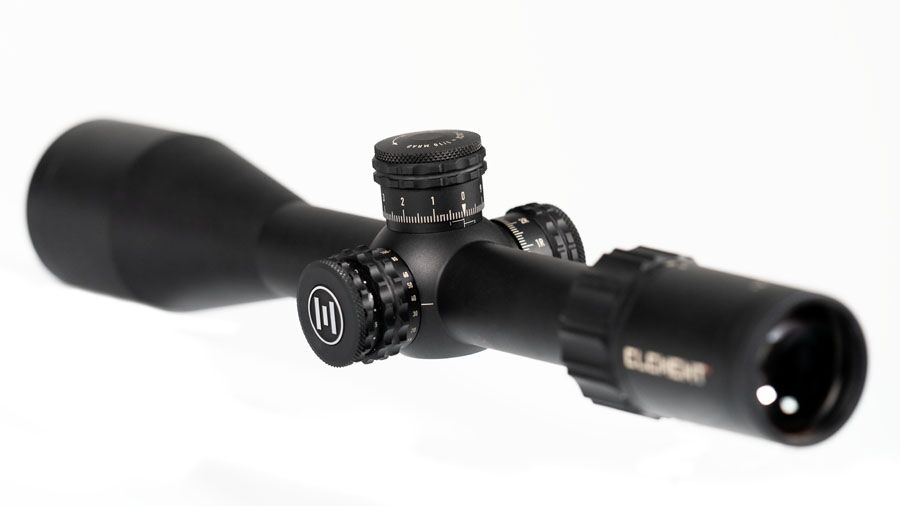

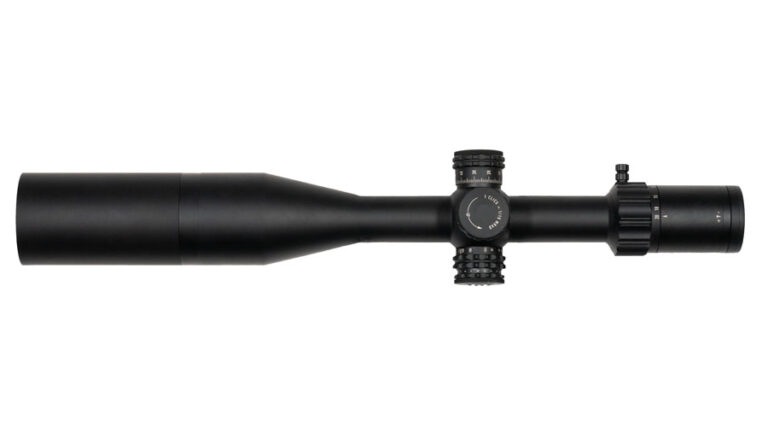

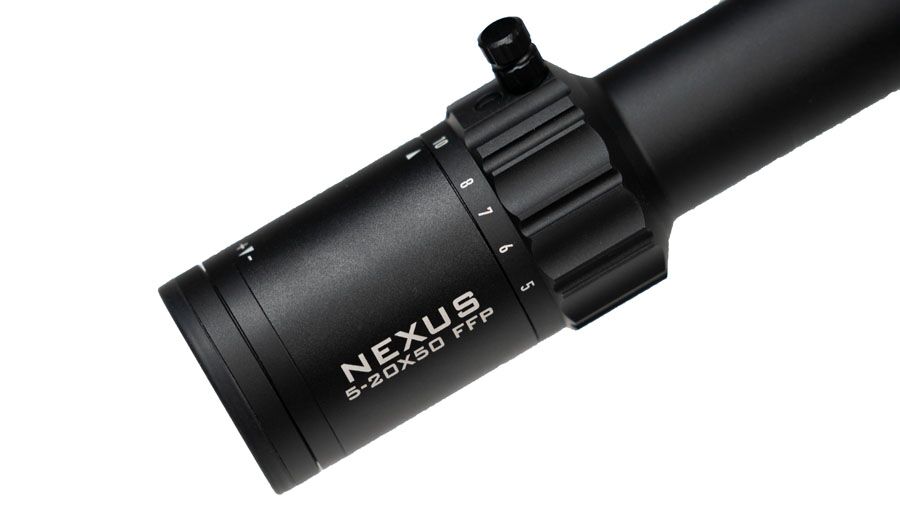

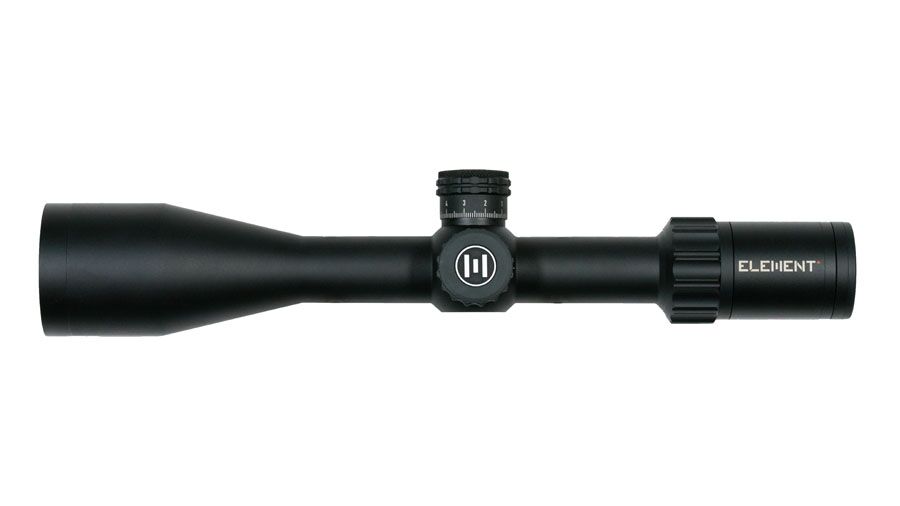

Element Optics NEXUS 5-20×50 FFP
The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understands optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. There’s a reason for the price tag: We’ve held nothing back, selecting only the very best materials, engineering teams, assembly procedures and technical inspections – and you’ll realize that the moment you pick it up. Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.
- 30mm Main Body Tube
- Compact, Lightweight design
- Illuminated, First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer

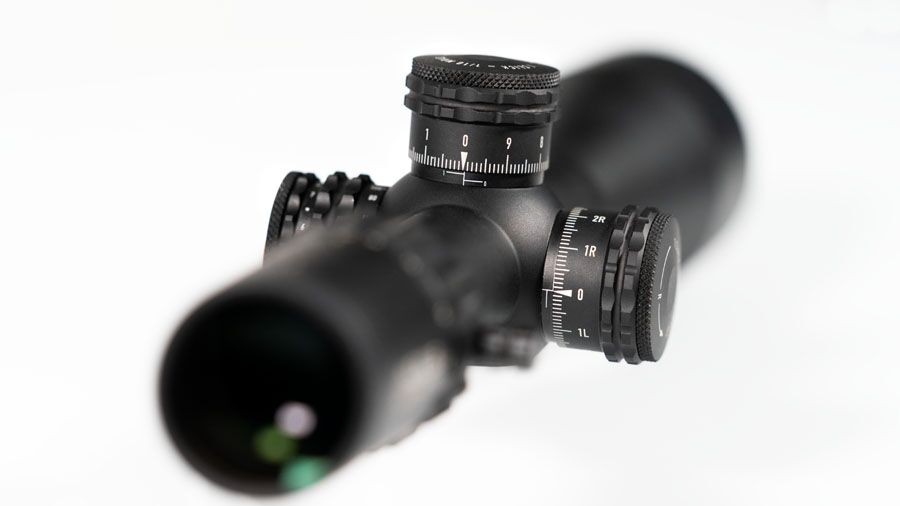

- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Neoprene Cover included
PDF RETICLE DOWNLOAD
Specifications:
| MAGNIFICATION RANGE | 5-20x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8-2.5mm |
| EYE RELIEF | 77-93mm (3.0-3.7”) |
| FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
| CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
| WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |
| LENGTH | 13.8” | 350mm |
| WEIGHT | 28oz | 794g |
DIMENSIONS
